LED strips for conveyor belts
10W high voltage 220V amber LED strip for conveyor belts, model: 10W-L10-230V-A
DS43-certified amber IP68 LED strips for conveyor belt lighting in open-pit and underground mines. With CCT below 2200K, these LED strips prevent light pollution and bird disorientation during night operations while providing reliable illumination for conveyor monitoring and maintenance.
The amber LED strip is ecological and environmentally friendly, it complies with the DS43 standard, which means that it does not pollute the skies or affect biodiversity and for this reason it is recommended for outdoor lighting of mining conveyor belts.
Light pollution is defined as the alteration of the natural darkness of the night, caused by wasted, unnecessary or inadequate artificial LED light, generated by outdoor lighting, which reduces the darkness of the skies and thus makes astronomical observation difficult, reducing the effectiveness of optical instruments.
This pollution also affects birds, they are attracted by individual luminaires or by the halo produced by a set of them, after which they become disoriented, collide and fall.

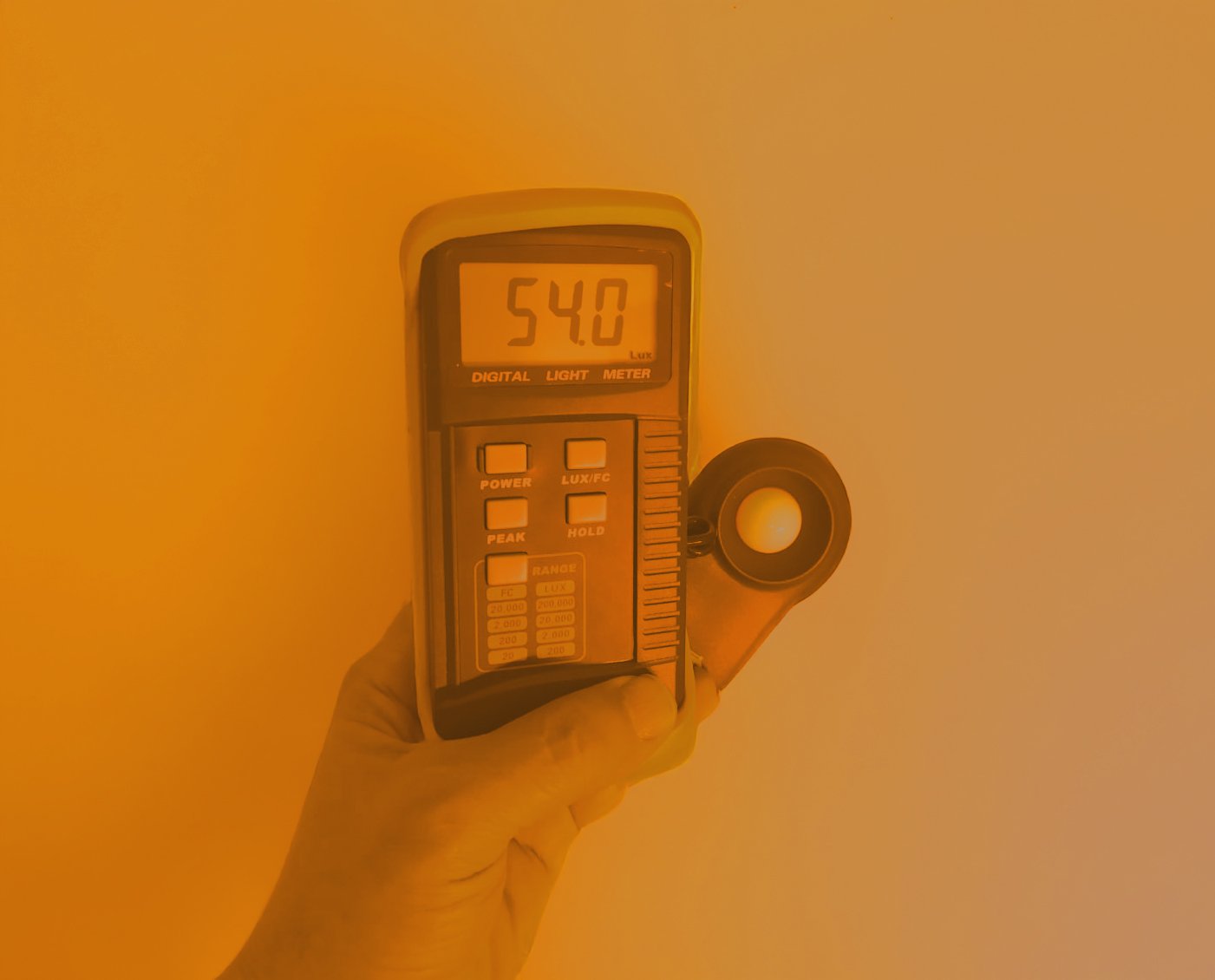

The amber LED strip model: 10W-L10-230V-A has its luminous flux attenuated to 850 lm, enough to not pollute the sky with an illuminance or luminous efficiency between 50 and 60 lux at 2m height.
For outdoor lighting, the DS43 standard establishes that the luminous flux of the luminaires, their CCT color temperature must be less than 2200K.

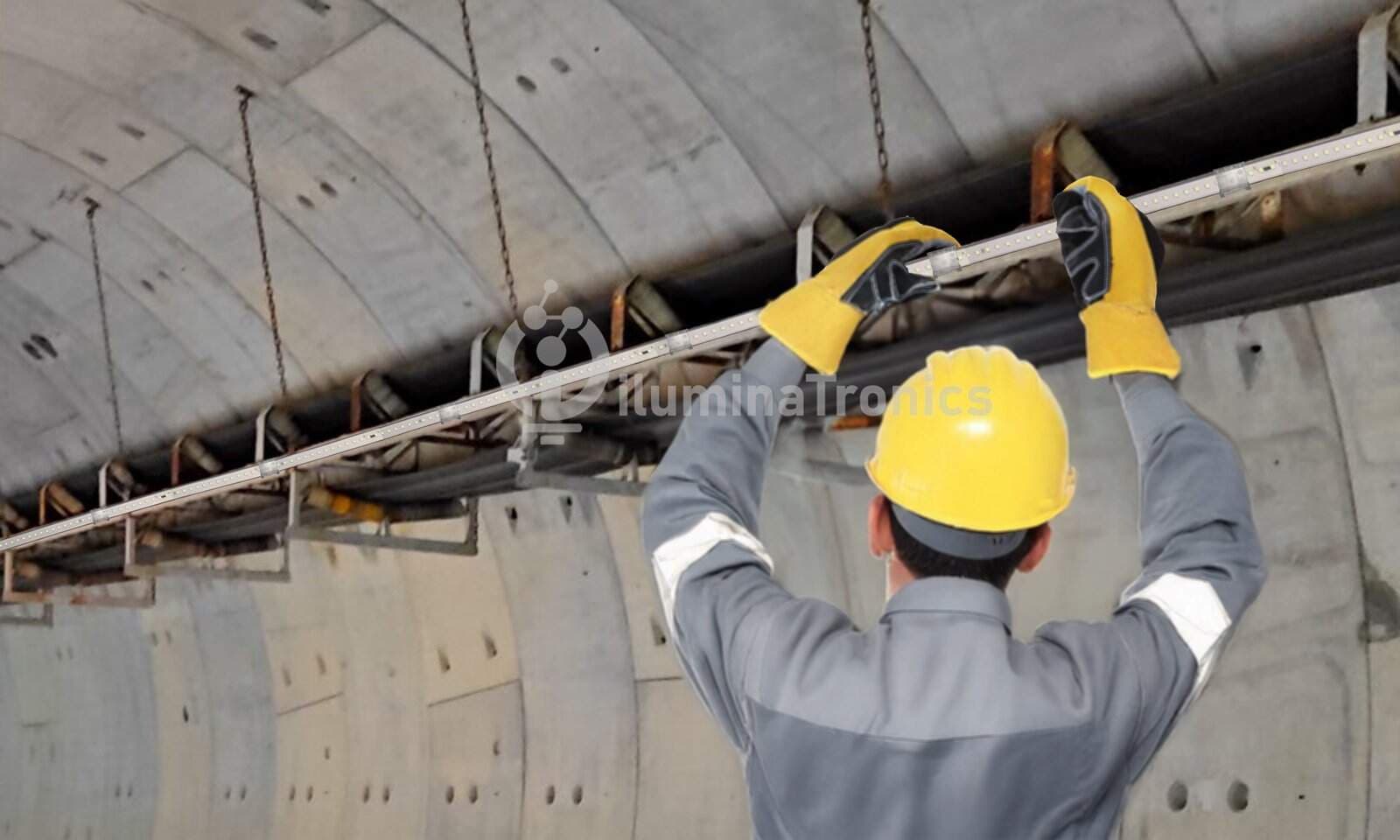

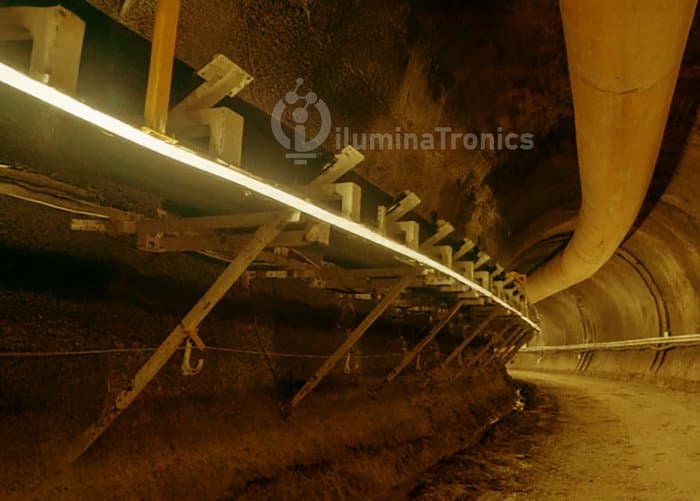

The amber LED strips are installed inside the tunnel on one side of the conveyor belt.
LED strips are 10m modular for easy maintenance, which means that if a segment is damaged it can be replaced quickly, saving on maintenance costs.
Each 10m segment of LED strip has an isolation fuse that is recommended by international standards to prevent the fire from spreading to the next 10m LED strip.
LED strips are rugged, resistant to compression, dust, moisture and acid water with an IP68 penetration rating because you can submerge them in water.

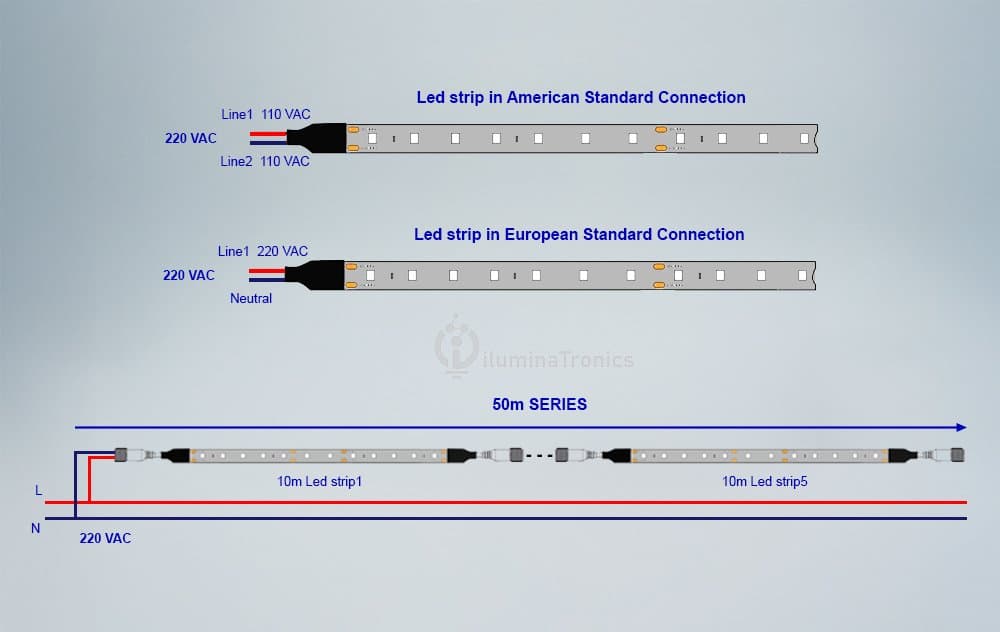

When we power the LED strip under the American standard at 220VAC we do it using two 110V phases without the neutral, the polarity of the cables does not matter.
When we do it under the European standard at 230VAC, we do it respecting the polarity by connecting the brown to live wire and the blue to the neutral wire.
Box contains 10 pieces of LED strip with a total length of 100m.
Cardboard boxes are a biodegradable and environmentally friendly material. However, couriers often leave these cardboard boxes exposed to rain and moisture, the cardboard disintegrates and the goods are lost during transport.
Our company Iluminatronics seals the cardboard boxes with adhesive nylon to prevent them from being destroyed by moisture during transport.
Technical content reviewed by the Iluminatronics Engineering Team
